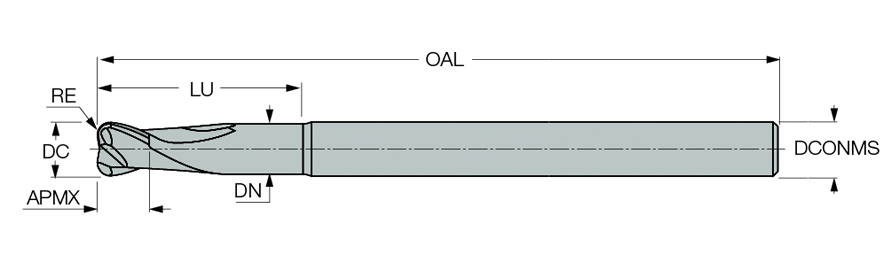

ETRI-A2 25-12/40C25R062 IC902
| Cutting Diameter (DC) | 1/4″ | Application | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 0.062″ |
| Depth of Cut Maximum (APMX) | 0.12″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3″ | Grade | IC902 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 0.236″ |
| Coating | AlTiN | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Flute Count (NOF) | 2 | Maximum Feed per Tooth (fz(max)) | 0.0027 ″/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0011 ″/tooth |
| Shank Type | Round | Length Group | Short|Stub |
| End Shape | Corner Radius | Decimal Equivalent | 0.035″ |
| Usable Length (LU) | 0.401″ | Measurement Type | Inch |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
Product Features
| Family Description | 2 flute toroidal endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
0.086
