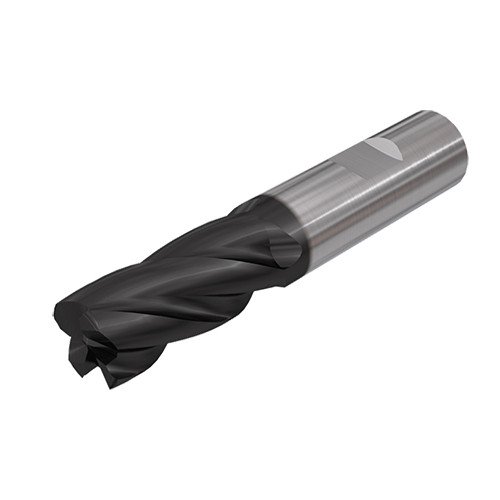

ECI-H4R 375-750C02CF-3.0 IC900
SQ End Mill; 3/8″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0.02″ RE ; 4 FL ; 3/4″ LBS ; Carbide ; AlTiN

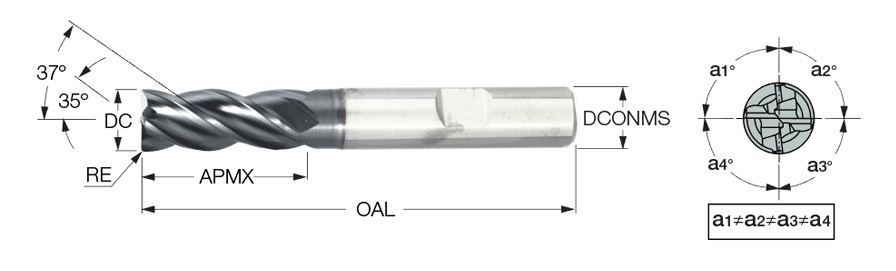

| Cutting Diameter (DC) | 3/8″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | IC900 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.0045 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.0015 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°) assorateed Radii and variable pitch for chatter damping.Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.169
