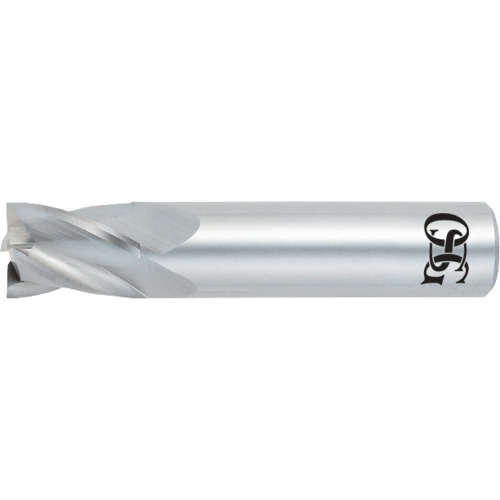

7/32″ Dia. × 1/4″ Shank × 7/16″ DOC × 2″ OAL, Carbide, TiAlN, 4 Flute, Stub, Solid End Mill
SQ End Mill; 7/32″ Dia. × 7/16″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 4 FL ; 7/16″ LBS ; Carbide ; AlTiN ; Series 414
| Cutting Diameter (DC) | 7/32″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 7/16″ |
| Depth of Cut Maximum (APMX) | 7/16″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 2″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Style | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.2188″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 414 |
Product Features
| Remarks | •Solid Carbide General Purpose, 2- & 4- Flute End Mills •Stub Length 4-Flute Single End Mills •Standard Micro Grain Carbide | Country of Origin | USA |
Shipping Info
Package Length
2.65000
Package Width
.50000
Package Weight
0.05
