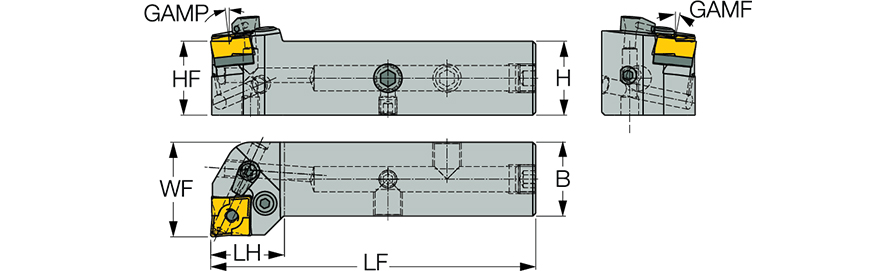

| Shank Height (H) | 20 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 95 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.5 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CXMG 12... |
Product Features
| Family Description | Lever lock tools with channels for high-pressure coolant carrying CXMG 80° rhombic inserts.The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
0.747
