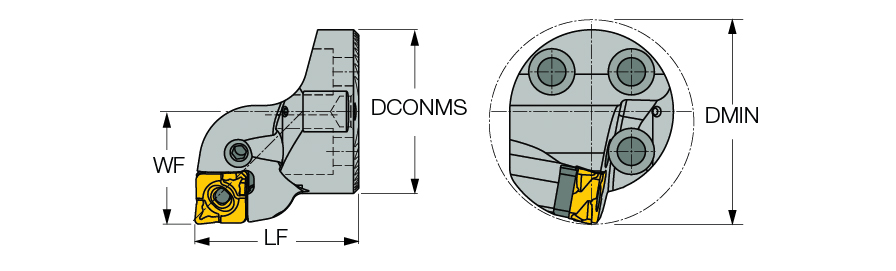

| Overall Length (OAL) | 1.024″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 1.024″ | Application | | Int. 80° Diamond 95° Approach | |
| Functional Width (WF) | 0.512″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Inscribed Circle Diameter (IC) | 0.368″ | Weight of Item (WT) | 0 lbs |
| Minimum Bore Diameter (DMIN) | 0.984″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | CXMG 09 | Style | SCLCL08-3A |
Product Features
| Family Description | .Interchangeable boring heads carrying 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.117
