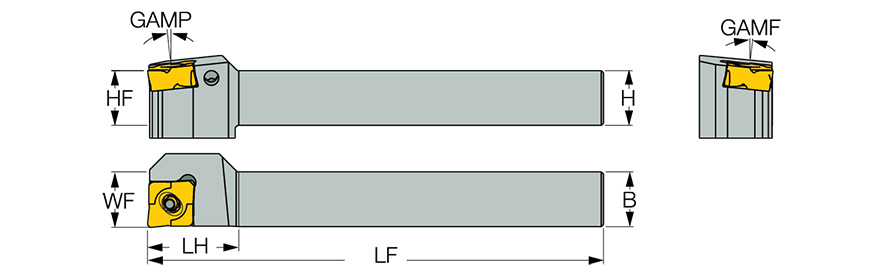

| Shank Height (H) | 1/2″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 3.99″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 0.787″ | Body Material | Steel |
| Functional Width (WF) | 0.51″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.368″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CXMG 09.. |
Product Features

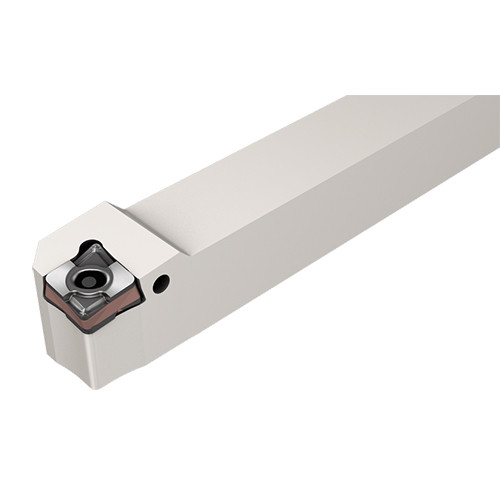

| Family Description | Lever lock tools carrying CXMG 80° rhombic inserts for Swiss type automatic lathes | Country of Origin | Israel |
Shipping Info
Package Weight
0.346
