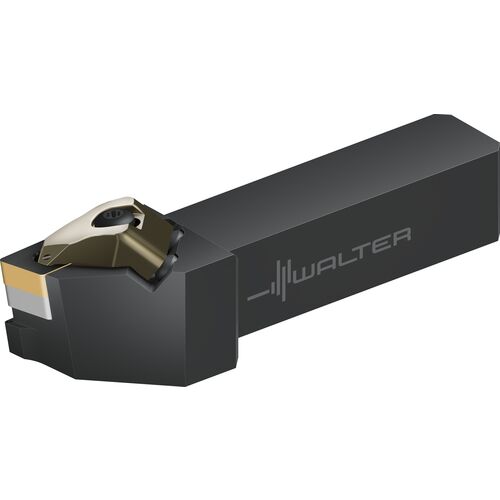

DCLNL165D-P HLDR
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width ; Left Hand ; Steel
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 1″ | Usable Length (LU) | 6″ |
| Protruding Length (LPR) | 6″ | Weight of Item (WT) | 1.847 lb |
| Overall Length (OAL) | 6″ | Body Material | Steel |
| Functional Length (LF) | 6″ | Clamping System | Wedge Lock |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Shank Size (SS) | 1″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | 1″ × 1″ |
| Shank Type | Square |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.046
