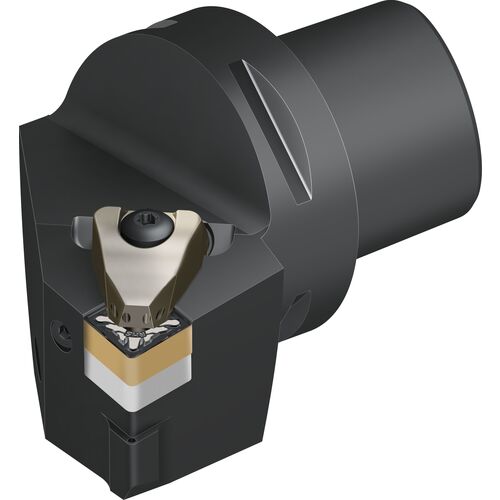

C5-DCLNR-35060-16-P HLDR
Turning Toolholder; 90 mm OAL × 50 mm Shank Dia. ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 90 mm | Rake Angle Radial (GAMF) | -6.4 Degrees |
| Overall Length (OAL) | 90 mm | Usable Length (LU) | 60 mm |
| Functional Length (LF) | 60 mm | Weight of Item (WT) | 1.764 lb |
| Functional Width (WF) | 35 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping System | Wedge Lock |
| Inscribed Circle Diameter (IC) | 15.875 mm | Tool Type | Turning Tool Holder |
| Minimum Bore Diameter (DMIN) | 600 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Shank Size (SS) | 50 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | C5 |
| Shank Type | Capto |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
