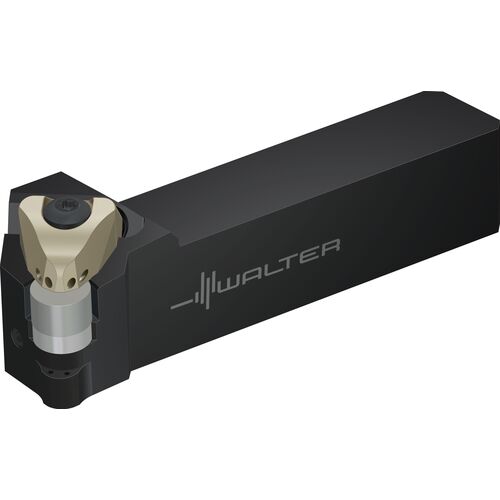

CRSNR2525X12-P HLDR
Turning Toolholder; 130 mm OAL × 25 mm Shank Height × 25 mm Shank Width ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 25 mm | Usable Length (LU) | 130 mm |
| Protruding Length (LPR) | 130 mm | Weight of Item (WT) | 1.543 lb |
| Overall Length (OAL) | 130 mm | Body Material | Steel |
| Functional Length (LF) | 130 mm | Clamping System | Self Clamp |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Shank Size (SS) | 25 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | 25 mm × 25 mm |
| Shank Type | Square |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.011
