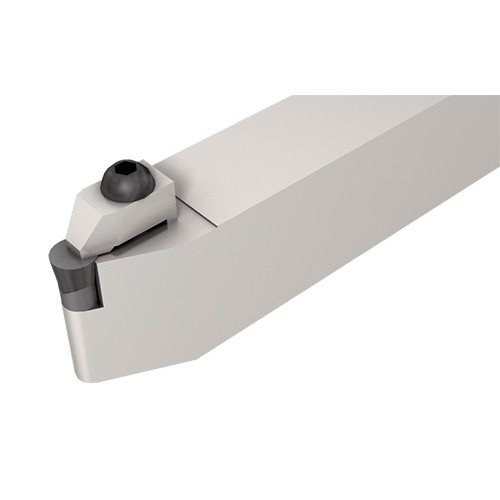

CRDCN 3225P-09-120

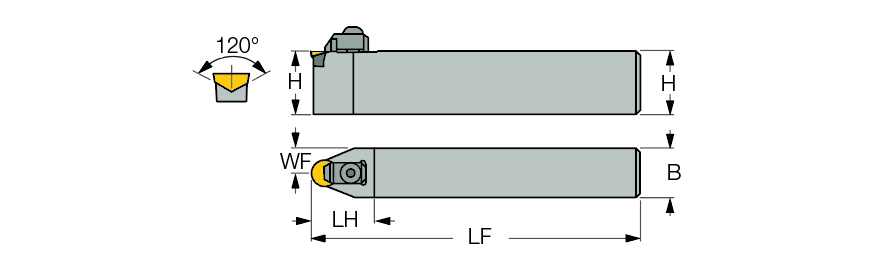

| Shank Height (H) | 32 mm | Master Insert Identification (MIID) | RCGX 090700 |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 12.5 mm | Body Material | Steel |
| Functional Width (WF) | 30 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Style | SCLCL08-3A |
Product Features
| Family Description | Clamp lock neutral tools carrying ceramic round 7° positive inserts for roll machining. | Country of Origin | S.Korea |
Shipping Info
Package Weight
2.332
