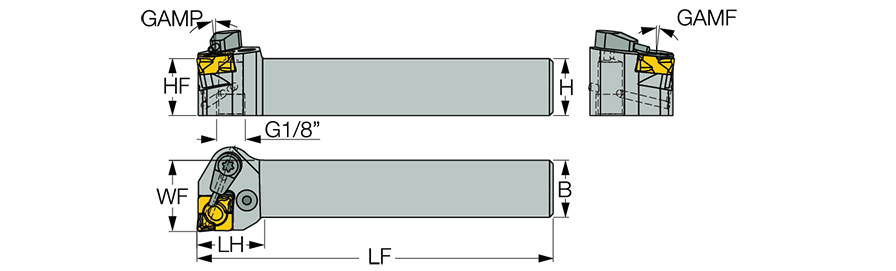

| Shank Height (H) | 1″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.492″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CXMG 12.. |
Product Features

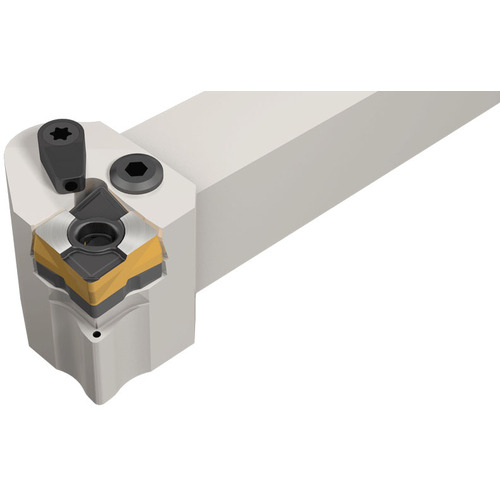

| Family Description | Lever lock tools with channels for high-pressure coolant carrying CXMG 80° rhombic inserts. | Country of Origin | Israel |
| Remarks | For more details, click on More Info |
Shipping Info
Package Weight
1.779
