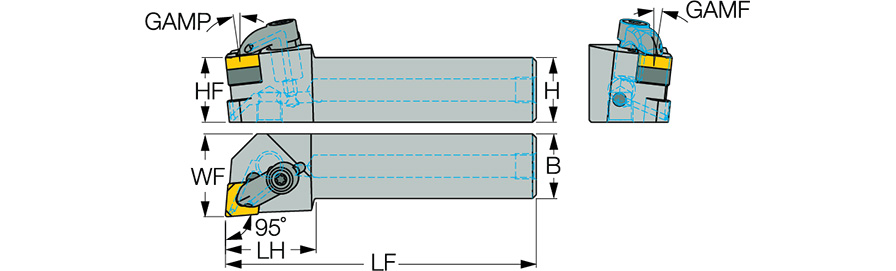

| Shank Height (H) | 25 mm | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 120 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 35 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNMG 1204 |
Product Features

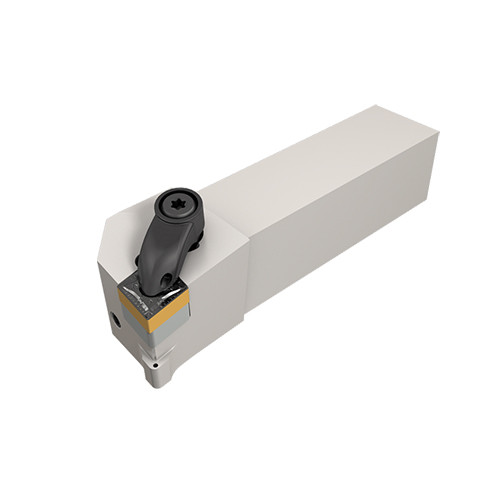

| Family Description | Rigid Clamp tools with channels for high-pressure coolant carrying CNMG/X 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.396
