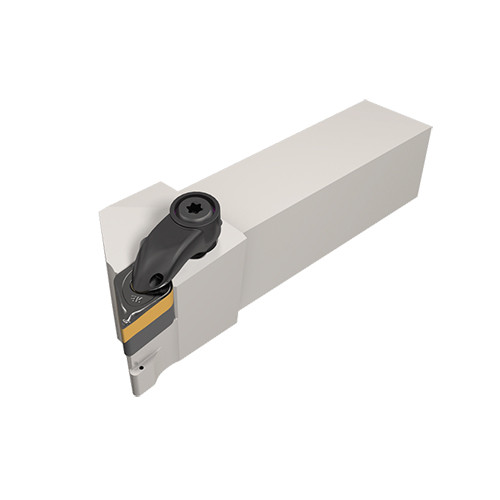

DDJNL 2525X-15-JHP-MC
Turning Toolholder; 125 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 40 mm LH ; Left Hand ; Steel

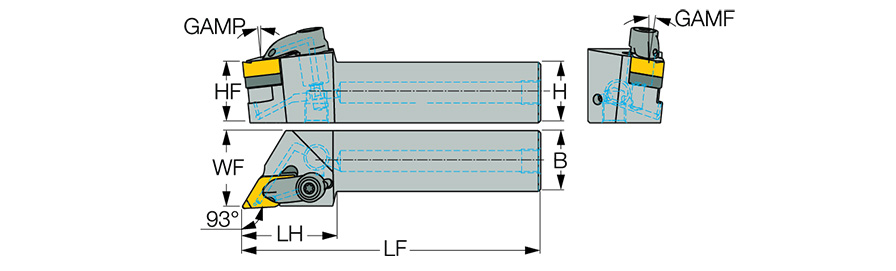

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | DNMG/X 1506 |
| Shank Width (B) | 25 mm | Application | | Ext. 55° Diamond 93° Approach | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
Product Features
| Family Description | Rigid Clamp tools with channels for high-pressure coolant carrying DNMG/X 55° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.380
