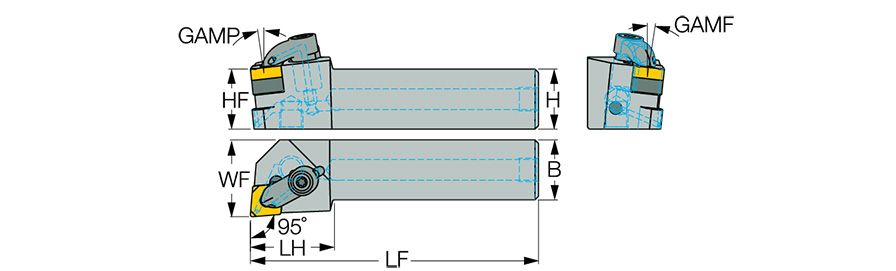

| Shank Height (H) | 3/4″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 4.14″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1.378″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CNMG 43.. |
Product Features
| Family Description | Rigid Clamp tools with channels for high-pressure coolant carrying CNMG/X 80° rhombic inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.939
