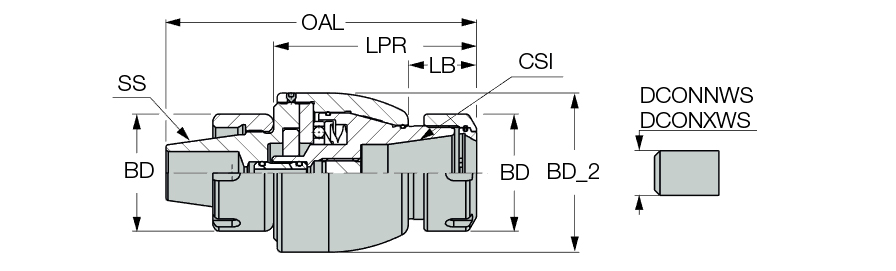

GFIS ER32X70-ER32
| Connection Size (CSI) | ER32 | Overall Length (OAL) | 5.236″ |
| Tool Type | Cylindrical Shanks | Weight of Item (WT) | 3.73 Lbs |
| Radial Float (RFI) | 0.009″ | Body Material | Steel |
| Measurement Type | Inch |
Product Features
| Family Description | A floating reamer collet chuck that keeps the system completely rigid until it reaches a steady state of reaming. It only starts floating once the reamer penetrates into the bore and the cutting forces are applied. | Country of Origin | Germany |
| Remarks | Maximum 10K RPM Angular floating range 0.5° For Reaming .118-.787 shank diameter range only |
Shipping Info
Package Weight
4.171
