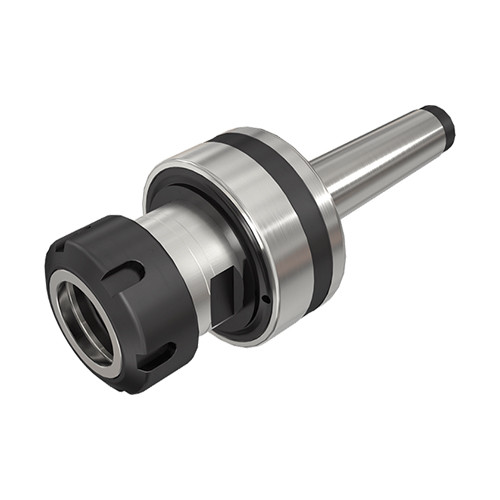

GFI MT 3 ER32 I

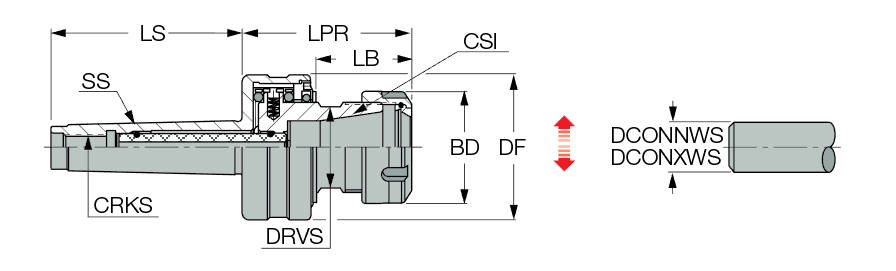

| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Body Diameter (BD) | 1.968″ | Body Length (LB) | 1.807″ |
| Flange Diameter (DF) | 2.559″ | Measurement Type | Inch |
| Protruding Length (LPR) | 3.028″ | Shank Length (LS) | 3.386″ |
| Tool Type | Morse Taper | Overall Length (OAL) | 6.414″ |
| Radial Float (RFI) | 0.06″ | Weight of Item (WT) | 2.73 Lbs |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ | Body Material | Steel |
Product Features

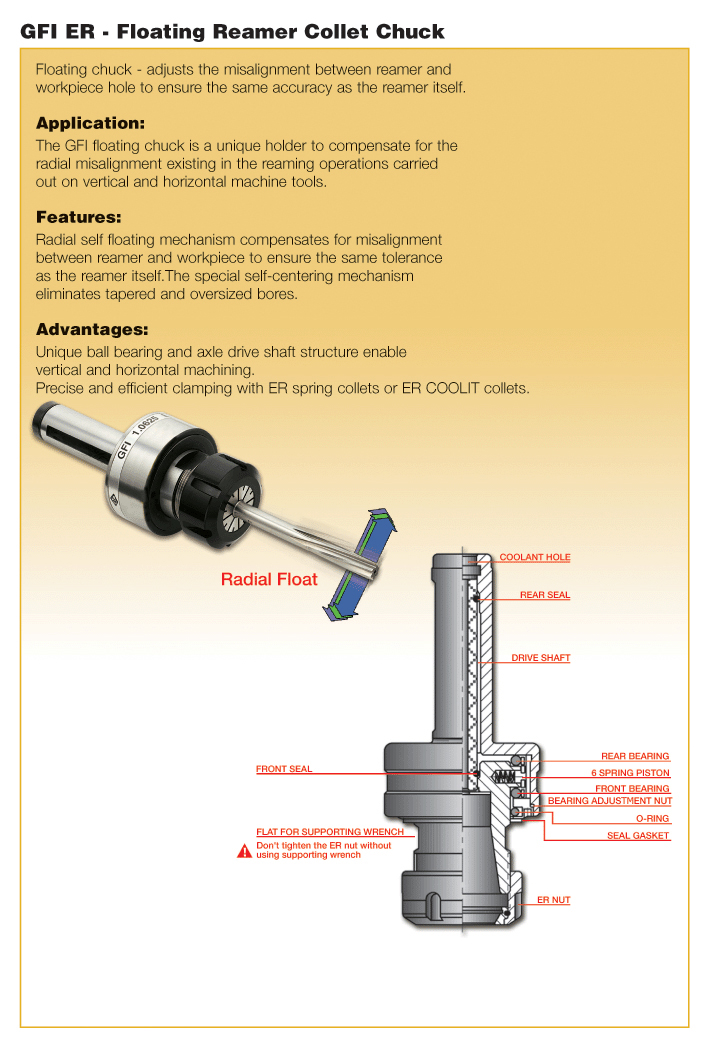

| Family Description | Floating reamer DIN 6499 collet chucks with Morse tapered shanks. | Country of Origin | Israel |
| Remarks | ! Maximum RPM 2000. For Adaptation Click on More Info. |
Shipping Info
Package Weight
2.756
Related Documentation
