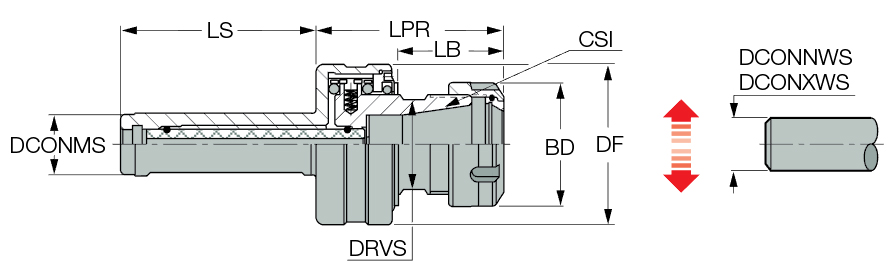

GFI ST20 ER20
| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Diameter (BD) | 34 mm | Body Length (LB) | 31 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Flange Diameter (DF) | 50 mm | Shank Length (LS) | 65 mm |
| Protruding Length (LPR) | 55.5 mm | Overall Length (OAL) | 120.5 mm |
| Tool Type | Cylindrical Shanks | Weight of Item (WT) | 0.56 Kg |
| Radial Float (RFI) | 0.5 mm | Body Material | Steel |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
Product Features

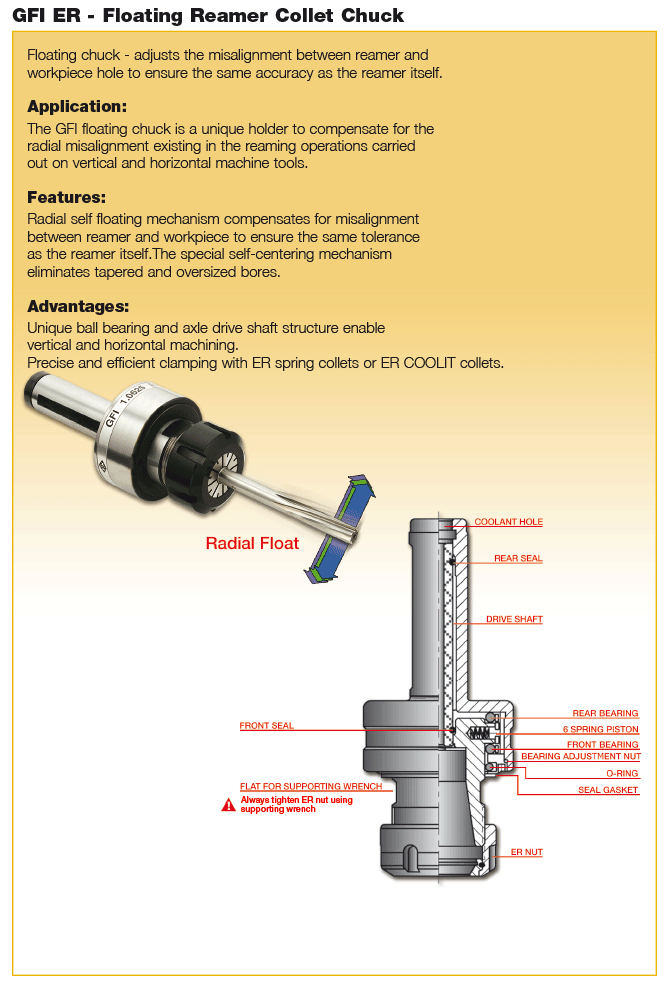

| Family Description | Floating reamer DIN 6499 collet chucks and cylindrical shanks with a clamping flat. | Country of Origin | Israel |
| Remarks | Maximum 2000 RPM! For Adaptation Click on More Info |
Shipping Info
Package Weight
1.270
