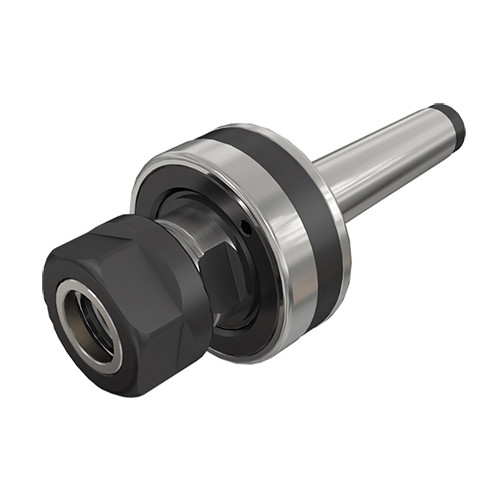

GFI MT 2 ER20

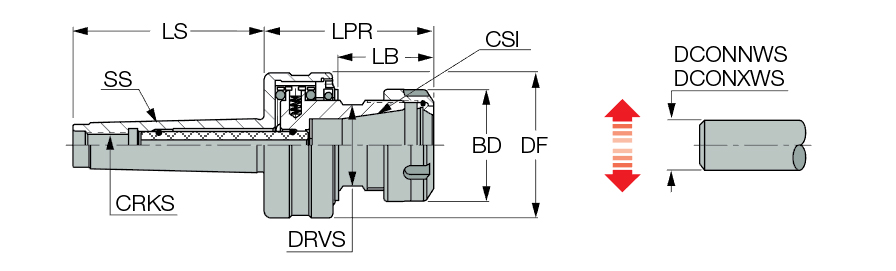

| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Diameter (BD) | 34 mm | Body Length (LB) | 34.5 mm |
| Flange Diameter (DF) | 50 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 60.5 mm | Shank Length (LS) | 64 mm |
| Tool Type | Morse Taper | Overall Length (OAL) | 124.5 mm |
| Radial Float (RFI) | 1 mm | Weight of Item (WT) | 0.51 Kg |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm | Body Material | Steel |
Product Features

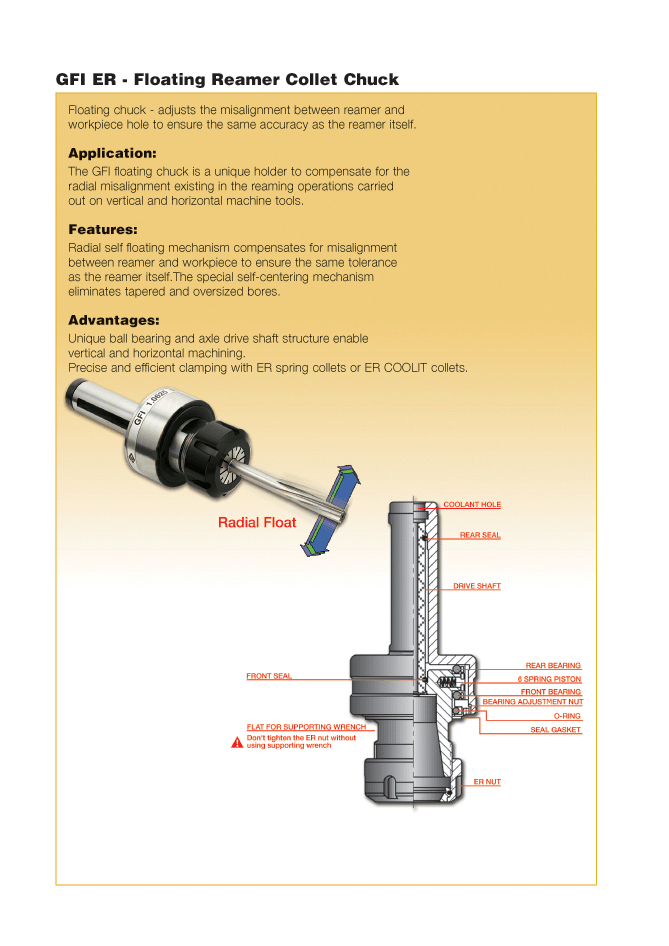

| Family Description | Floating reamer DIN 6499 collet chucks with Morse tapered shanks. | Country of Origin | Israel |
| Remarks | ! Maximum RPM 2000. For Adaptation Click on More Info. |
