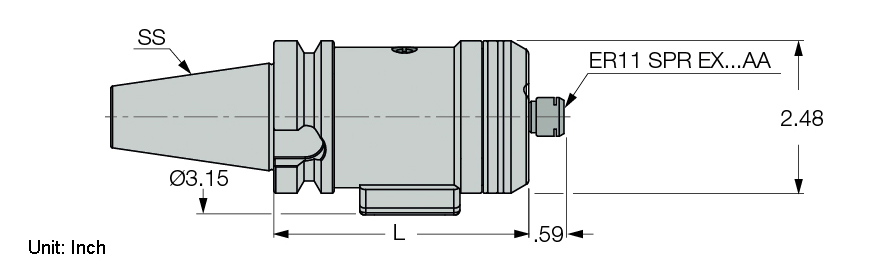

TJS30KBT40L
| Shank Size (SS) | BT40 | Thread Size | ER11 SPR EX |
| Protruding Length (LPR) | 4.134″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | ER11 | Measurement Type | Metric |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Max. tool shank diameter: 6.0 mm Coolant pressure through machine spindle:Min. 2 MPa / Max. 4 MPa Min. flow rate: 12 l/min |
