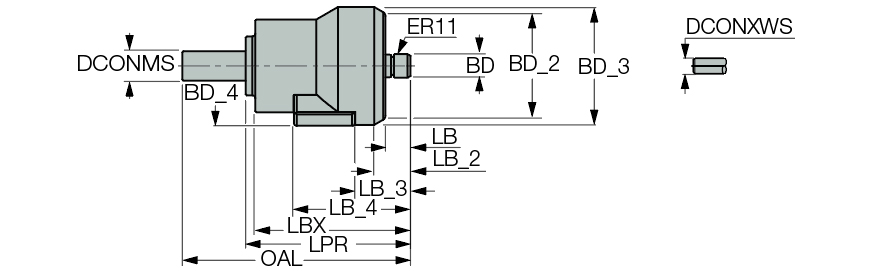

| Protruding Length (LPR) | 1 | Measurement Type | Metric |
| Overall Length (OAL) | 155 mm | Tool Type | High speed spindles |
| Body Diameter (BD) | 16 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Thread Size | ER11 SPR EX | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features

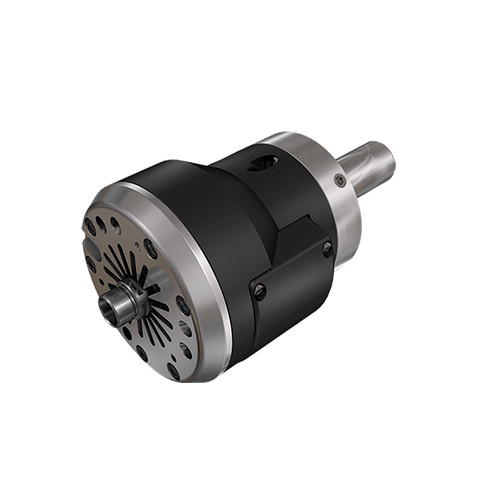

| Family Description | High-Pressure Coolant driven HSM spindle with straight shank, for small diameter cutting tools. Can be used for semi finish and finish machining applications. | Country of Origin | Israel |
| Remarks | Coolant pressure 15-70 bar and flow rate 10-22 l/min RPM range 20,000-45,000 RPM The spindle provides only external strong coolant jet around the tool Battery not supplied |
Shipping Info
Package Weight
3.019
