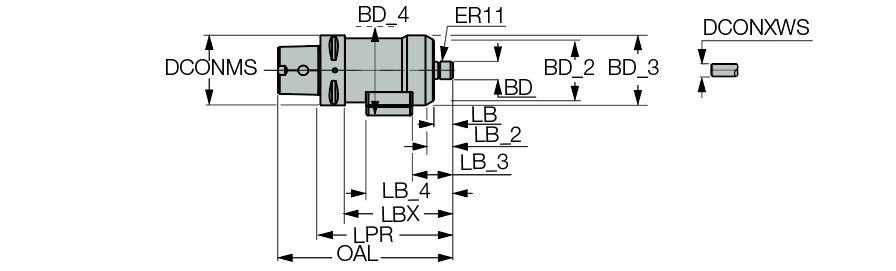

| Shank Size (SS) | C6 | Thread Size | ER11 SPR EX |
| Functional Length (LF) | 4.016″ | Measurement Type | Inch |
| Protruding Length (LPR) | 4.685″ | Connection Diameter Machine Side (DCONMS) | 2.48″ |
| Overall Length (OAL) | 6.181″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.276″ |
| Body Diameter (BD) | 0.6299″ | Body Material | Steel |
| Weight of Item (WT) | 3.53 lbs |
Product Features

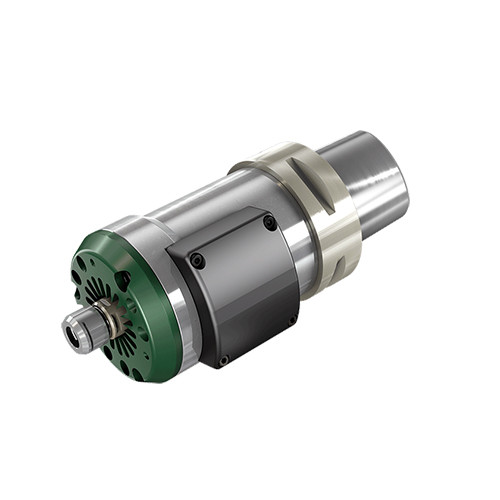

| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Minimum coolant pressure 290 psi and flow rate 3.17 GPM The spindle provides only external strong coolant jet around the tool Battery not supplied For user guide, click on More Info |
Shipping Info
Package Weight
3.019
