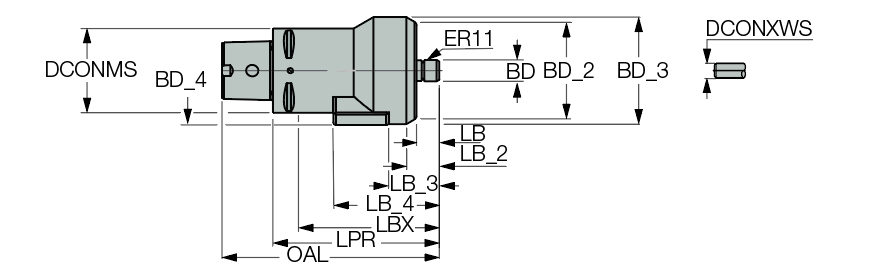

| Shank Size (SS) | C6 | Measurement Type | Inch |
| Protruding Length (LPR) | 1 | Tool Type | High speed spindles |
| Overall Length (OAL) | 6.26″ | Connection Diameter Machine Side (DCONMS) | 2.48″ |
| Body Diameter (BD) | 0.6299″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.276″ |
| Thread Size | ER11 SPR EX | Body Material | Steel |
Product Features

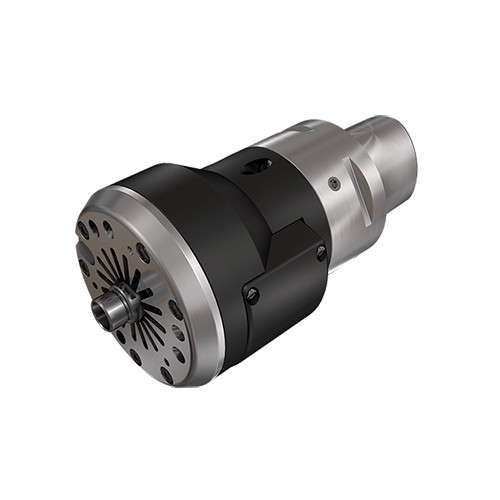

| Family Description | High-Pressure Coolant driven HSM spindle with CAMFIX shank, for small diameter cutting tools. Can be used for semi finish and finish machining applications. | Country of Origin | Israel |
| Remarks | Coolant pressure 217-1000 PSI and flow rate 2.6-5.8 GPM RPM range 20,000-45,000 RPM The spindle provides only external strong coolant jet around the tool Battery not supplied |
Shipping Info
Package Weight
3.019
