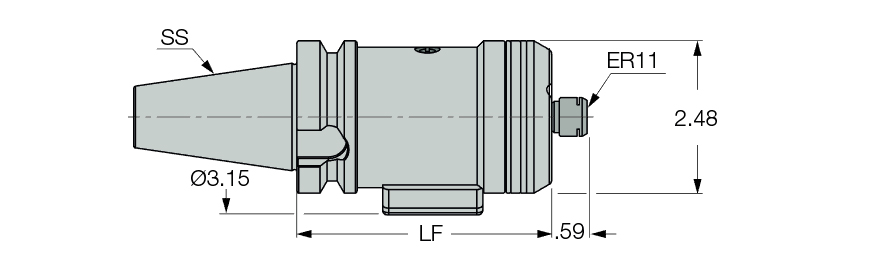

| Shank Size (SS) | 40 mm | Coolant Supply Property (CSP) | Through Hole |
| Protruding Length (LPR) | 4.134″ | Measurement Type | Inch |
| Thread Size | ER11 SPR EX | Tool Type | High Speed Spindle |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Maximum tool shank diameter .236″ Minimum coolant pressure 290 psi and flow rate 3.17 GPM The spindle provides only external strong coolant jet around the tool For user guide, click on "More Info" |
