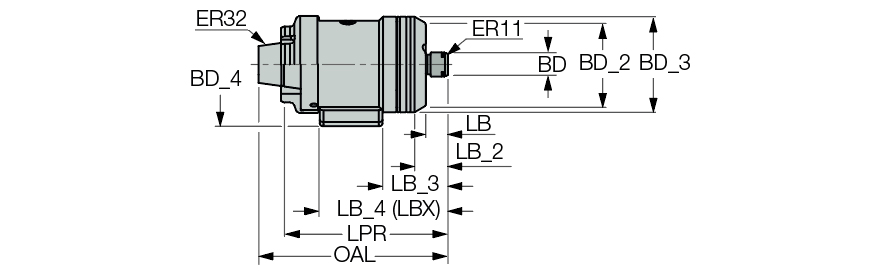

| Shank Size (SS) | ER32 | Coolant Supply Property (CSP) | Through Hole |
| Protruding Length (LPR) | 3.787″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ | Tool Type | High speed spindles |
| Body Diameter (BD) | 0.6299″ | Body Material | Steel |
| Thread Size | ER11 |
Product Features
| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Maximum tool shank diameter .236″ Minimum coolant pressure 290 psi and flow rate 3.17 GPM The spindle provides only external strong coolant jet around the tool Battery: CR2 3V Lit For user guide, click on "More Info" |
Shipping Info
Package Weight
3.770
