KIT HSK A63 HYDRO20X100

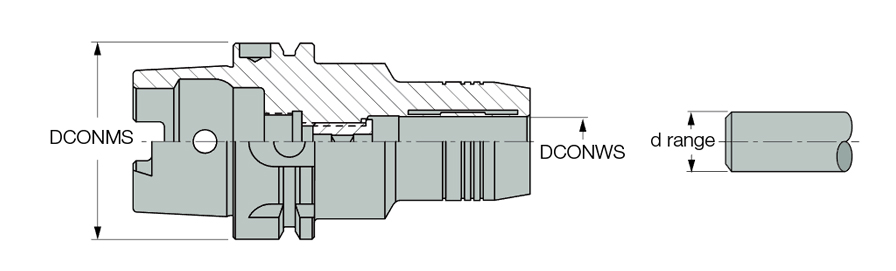

| Connection Size (CSI) | SC 20 S | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Application | | Hydraulic Chucks | Tooling Kits & Sets | |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Diameter Range | 6,8,10,12,16 mm | Tool Type | Holder Kits |
| Shank Standard | HSK A | Body Material | Steel |
| Contains | 5 |
Product Features
| Family Description | The kits contains a hydraulic chuck with HSK tapered shank and a set of collets in various bore sizes. Most recommended for chatter dampening especially when machining high temperature alloys like titanium. | Country of Origin | Germany |

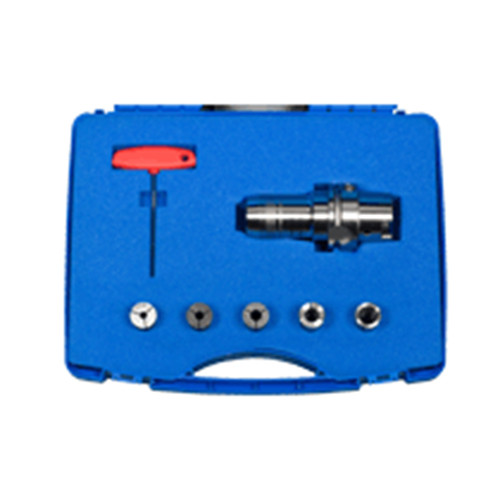

| Remarks | Each kit contains one HYDROFIT chuck, a set of SC...HYDRO sealed reducers and a clamping wrench. A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on "More Info". |
Shipping Info
Package Weight
5.159
Related Documentation
