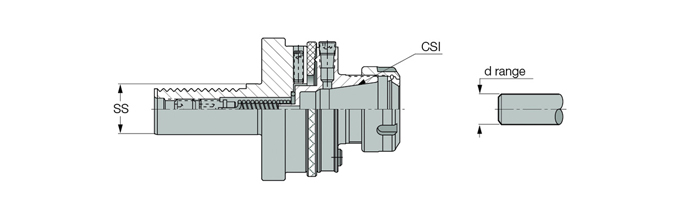

KIT GYRO 30 D69880 ER32
| Connection Size (CSI) | ER32 | Shank Standard | DIN69880 |
| Shank Size (SS) | VDI30 | Application | Tooling Kits & Sets | VDI-DIN69880 |
| Connection Diameter Machine Side (DCONMS) | VDI30 | Measurement Type | Metric |
| Diameter Range | 2-20 mm | Tool Type | VDI-DIN69880 |
Product Features
| Family Description | The kits contain 1 center alignment ER collet chuck with VDI DIN 69880 shank and a centering bushing. | Country of Origin | Israel |
| Remarks | Kit includes: GYRO, test bar and bushing |
Shipping Info
Package Weight
9.151
Related Documentation
Eccenter drilling sleevs are used for increasing and decreasing the nominal diameter of indexable drills on milling machines and for misalignment correction on lathes. When used on milling machine,the M engraved scale should be referred to.When used on lathe machine,the L designated scale should be referred to.The scale appears on the frontal flange of the sleeves.
