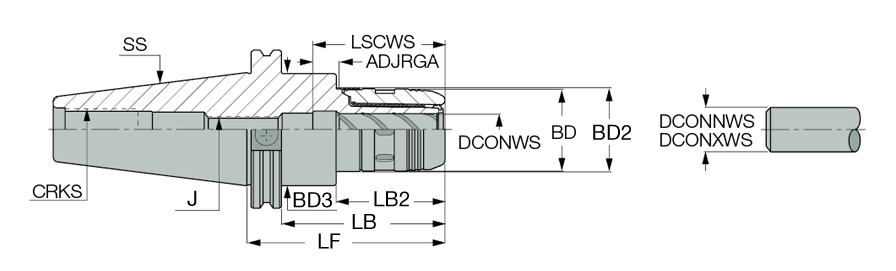

CAT50 TUNGMAX 1-1/4X4.05B
| Connection Diameter Machine Side (DCONMS) | CAT50 | Coolant Supply Property (CSP) | External |
| Body Diameter (BD) | 2.717″ | Application | | Tapered shape interface | |
| Body Length (LB) | 3.3″ | Shank Size (SS) | CAT50 |
| Protruding Length (LPR) | 108 mm | Tool Type | Caterpillar |
| Overall Length (OAL) | 4.05″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Measurement Type | Inch |
| Shank Type | CAT | Thread Designation Inside (THID) | M20X2 |
| Connection Retention Knob Thread Size (CRKS) | 1-8 | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | TungMax endmill chuck holders with CAT shank | Country of Origin | Israel |
Shipping Info
Package Weight
0
