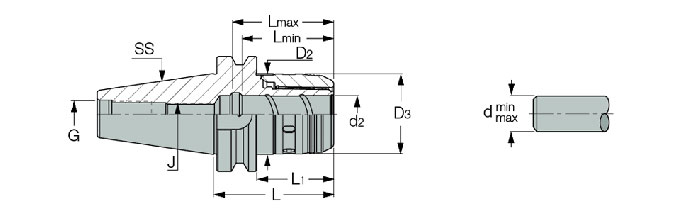

BT50MAXIN1-1/4X5.314
| Connection Diameter Machine Side (DCONMS) | BT50 | Coolant Supply Property (CSP) | External |
| Body Diameter (BD) | 2.717″ | Shank Size (SS) | 40 |
| Body Length (LB) | 3.82″ | Tool Type | BT |
| Protruding Length (LPR) | 5.315″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Thread Size | M20 | Measurement Type | Inch |
| Shank Type | BT | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Optional reduction sleeves sold separately | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
