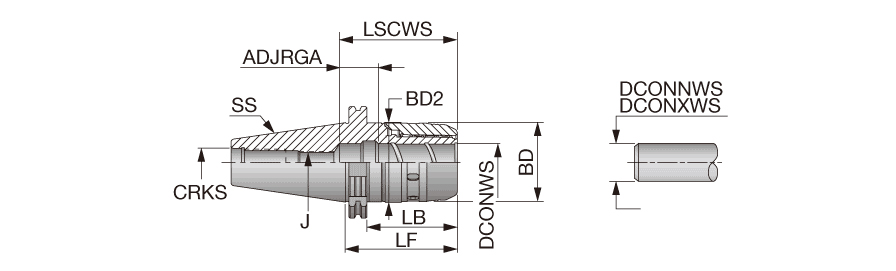

DIN6987150MAXIN32X100B
| Body Diameter (BD) | 69 mm | Application | | Tapered shape interface | |
| Body Length (LB) | 81 mm | Shank Size (SS) | 50 |
| Protruding Length (LPR) | 108 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 100 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Measurement Type | Metric |
| Shank Type | BT | Thread Designation Inside (THID) | M20X2 |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | TungMax endmill chuck holders with DIN69871 shank | Country of Origin | Israel |
| Remarks | Add B for coolant through the flange. |
