DIN6987150MAXIN20X105BIN

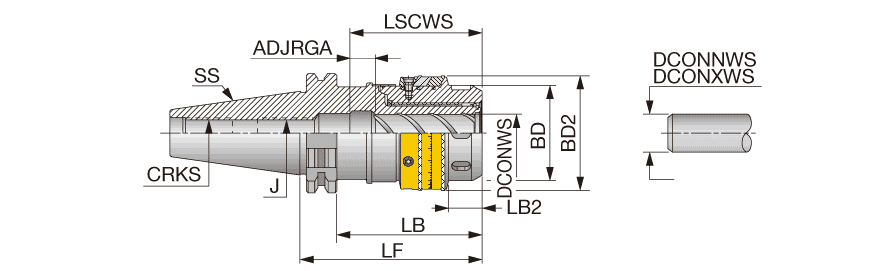

| Body Diameter (BD) | 50.5 mm | Application | DIN69871 Interface | TungMax Milling Chucks |
| Body Length (LB) | 86 mm | Shank Size (SS) | 50 |
| Protruding Length (LPR) | 108 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 105 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Shank Type | BT | Thread Designation Inside (THID) | M16 |
| Connection Retention Knob Thread Size (CRKS) | M24 | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | TungMax Balancable endmill chuck holders with DIN69871 shank | Country of Origin | Israel |
Shipping Info
Package Weight
0
