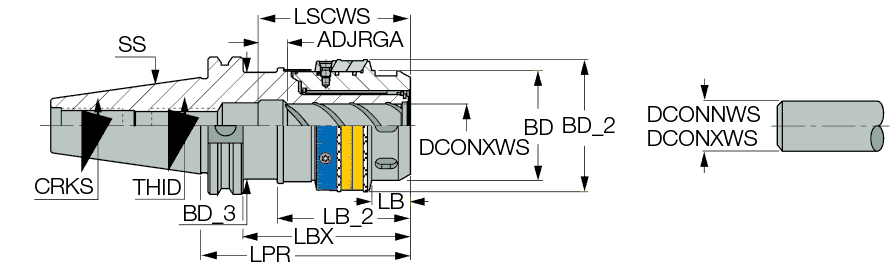

CAT40 MAXIN 1-1/4X4.16BIN
| Connection Diameter Machine Side (DCONMS) | CAT40 | Application | | CAT A.N.S.I B5.50 | Collet Chucks | |
| Body Diameter (BD) | 2.697″ | Shank Size (SS) | 40 |
| Body Length (LB) | 0.98″ | Tool Type | DIN 69871 |
| Body Length_2 (LB_2) | 2.776″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Protruding Length (LPR) | 4.16″ | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Balanceable power chucks with Caterpillar AD/B tapered shanks | Country of Origin | Israel |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. First clamp the tool inside the chuck and then improve the system's balance by adjusting the balancing rings Add B to the designation for coolant through flange option. |
Shipping Info
Package Weight
5.732
