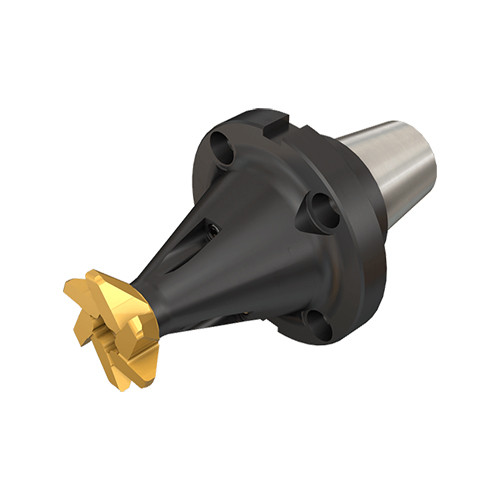

CAT40 MAXIN 3/4X3.75 B
| Connection Diameter Machine Side (DCONMS) | CAT40 | Shank Size (SS) | CAT40 |
| Body Diameter (BD) | 69 mm | Tool Type | BT |
| Body Length (LB) | 2.992″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Protruding Length (LPR) | 3.744″ | Measurement Type | Inch |
| Shank Type | CAT | Body Material | Steel |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Power chucks with Caterpillar form AD/B tapered shanks. | Country of Origin | Israel |
| Remarks | Use of d2 diameter tools provides best performance as collets reduce gripping force by 25%. B is the designation for coolant through flange. |
Shipping Info
Package Weight
3.7490
