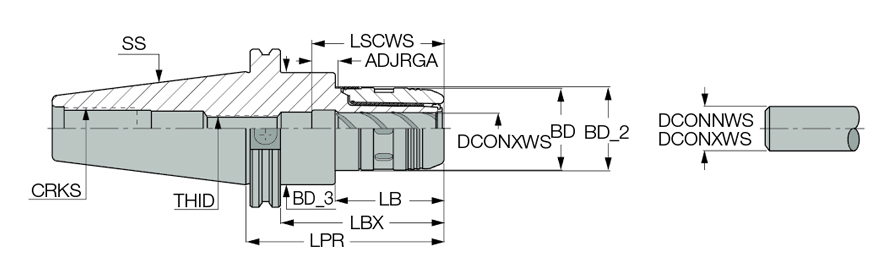

CAT50 MAXIN 1-1/4X5.314
| Body Diameter (BD) | 2.717″ | Shank Size (SS) | 50 |
| Protruding Length (LPR) | 5.315″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Shank Type | CAT | Measurement Type | Inch |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Power chucks with Caterpillar form AD/B tapered shanks. | Country of Origin | Israel |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. B is the designation for coolant through flange. |
Shipping Info
Package Weight
11.499

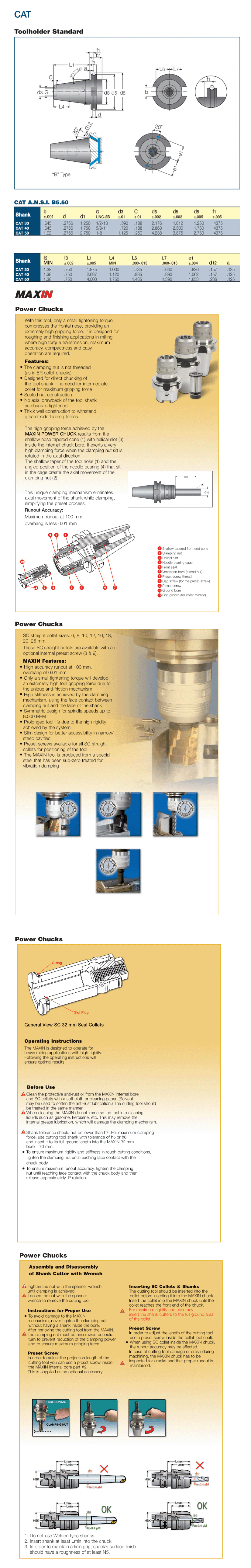

Related Documentation
