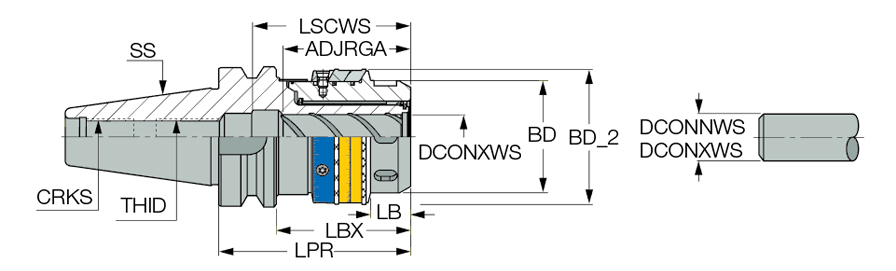

BT40 MAXIN 1-1/4X4.25 BIN
| Connection Diameter Machine Side (DCONMS) | BT40 | Application | | BT | Collet Chucks | |
| Body Diameter (BD) | 2.697″ | Shank Size (SS) | 40 |
| Body Length (LB) | 0.98″ | Tool Type | BT |
| Protruding Length (LPR) | 4-1/4″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Shank Type | BT | Measurement Type | Inch |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | MAXIN balanceable power chucks with BT MAS-403 AD tapered shanks. | Country of Origin | Israel |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. First clamp the tool inside the chuck and then improve the system's balance by adjusting the balancing rings |
Shipping Info
Package Weight
3.549
