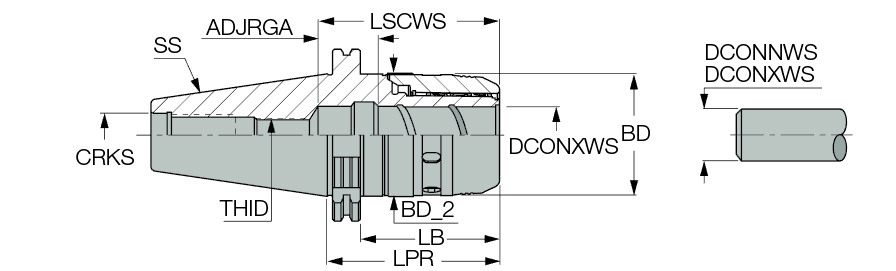

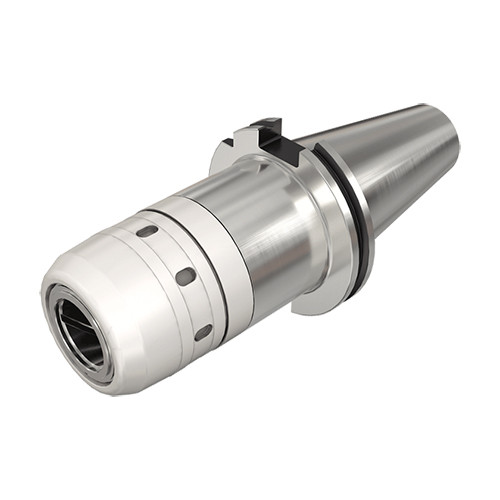

DIN69871 40 MAXIN 20X 95
| Body Diameter (BD) | 51 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 95 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Shank Type | BT | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | DIN69871 |
| Shank Size (SS) | 40 |
Product Features
| Family Description | Power chucks with DIN 69871 form AD/B taper shanks | Country of Origin | Israel |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. B is the designation for coolant through flange . |
Shipping Info
Package Weight
3.862
