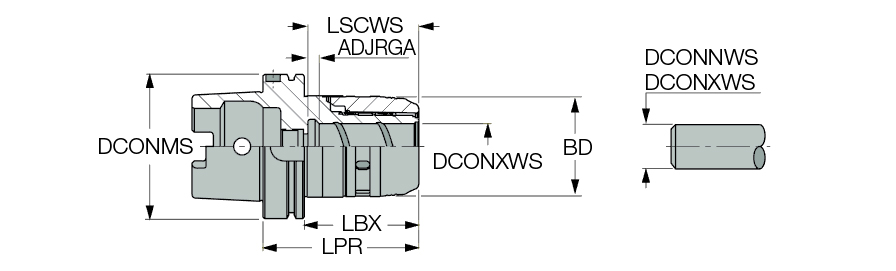

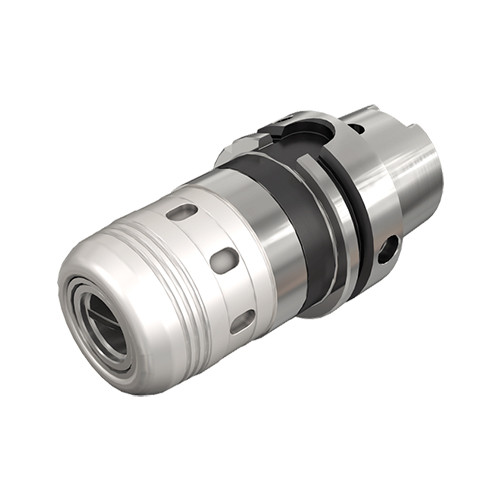

HSK A100 MAXIN20X115
| Body Diameter (BD) | 51 mm | Shank Size (SS) | 100 |
| Body Length_2 (LB_2) | 115 mm | Tool Type | HSK |
| Protruding Length (LPR) | 115 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Shank Type | HSK | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | MAXIN power chucks with HSK DIN69893 form A tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. For shank dimensions, see more info. |
Shipping Info
Package Weight
7.180
