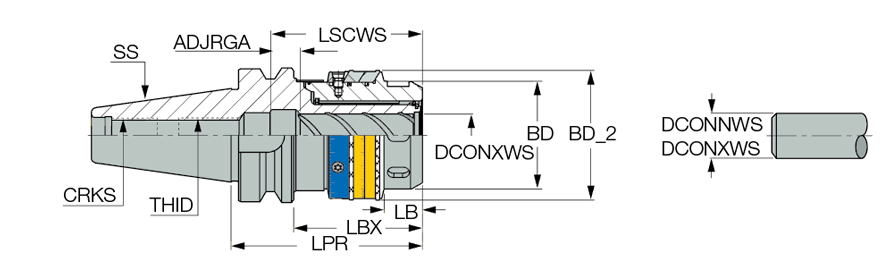

BT40 MAXIN 32X108 BIN
| Connection Diameter Machine Side (DCONMS) | BT40 | Application | | BT | Collet Chucks | |
| Body Diameter (BD) | 69 mm | Shank Size (SS) | 40 |
| Body Length (LB) | 25 mm | Tool Type | BT |
| Protruding Length (LPR) | 108 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Shank Type | BT | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | MAXIN balanceable power chucks with BT MAS-403 AD tapered shanks. | Country of Origin | Israel |
| Remarks | Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. Add B as suffix to the designation for coolant through flange First clamp the tool inside the chuck and then improve the system's balance by adjusting the balancing rings |
Shipping Info
Package Weight
3.527
