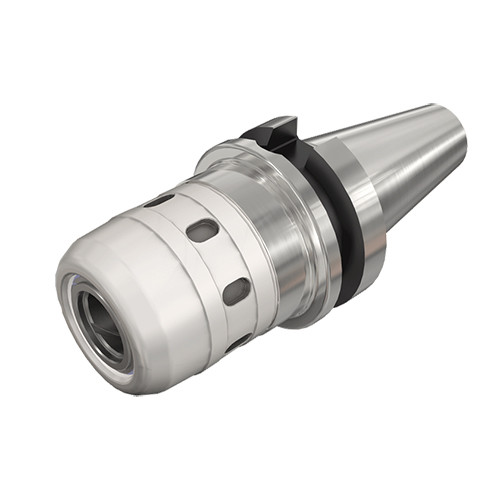

BT40 FC MAXIN32X108

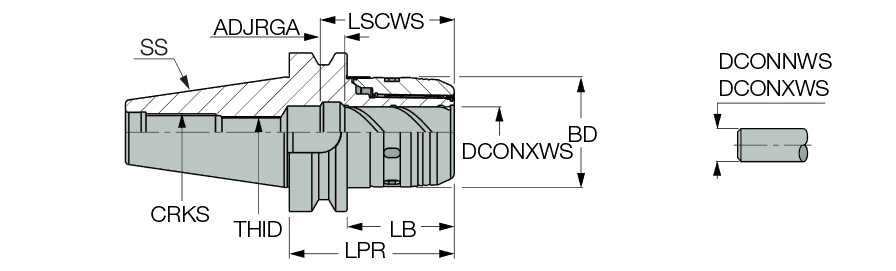

| Body Diameter (BD) | 70 mm | Tool Type | BT |
| Protruding Length (LPR) | 108 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Shank Type | BT | Measurement Type | Metric |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | BT |
| Shank Size (SS) | 40 |
Product Features
| Family Description | MAXIN power chucks with BT MAS-403 face contact AD tapered shanks. | Country of Origin | Israel |
| Remarks | For adaptation details, click on More Info. |
Shipping Info
Package Weight
5.816
