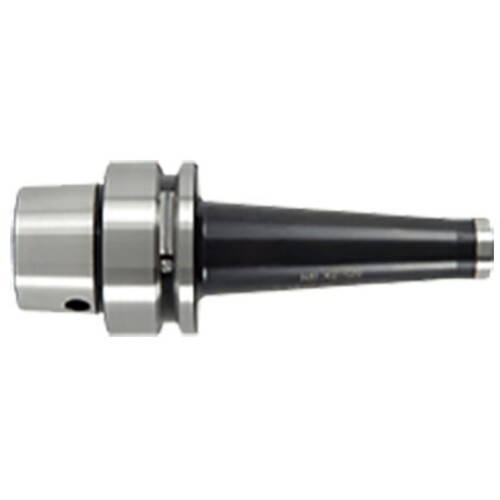

HSK E50 ODP10X59

Item # EH4504592

Brand: Iscar

MFG #: 4504592

Alternate MFG #: 04504592

Legacy Part #: EH4504592

Shank Size (SS)

Application

| FLEXFIT | HSK |

Protruding Length (LPR)

2.323″

Connection Thread Nominal Size Workpiece Side (THSZWS)

M10

Body Length (LB)

0.984″

Connection Diameter Workpiece Side (DCONWS)

0.559″

Body Diameter (BD)

0.787″

Tool Type

HSK

Connection Size Work Piece Side (DCONWS)

Coolant Supply Property (CSP)

Through Hole

Shank Standard

HSK E

Measurement Type

Inch

Connection Diameter Machine Side (DCONMS)

1.968″

Body Material

Steel

Product Features

Family Description

FLEXFIT Threaded Adaptation with HSK DIN69893/E tapered shanks.

Country of Origin

Israel

Remarks

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For adaptation Click on "More Info".

Package Weight

1.122
