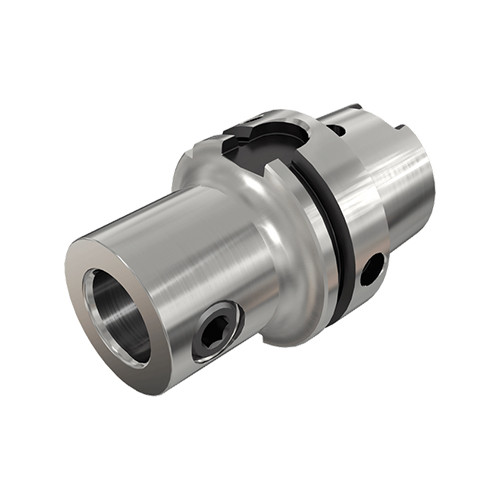

HSK A63 CF4-S
| Shank Size (SS) | 63 | Application | | CLICKFIT | HSK | |
| Protruding Length (LPR) | 2.756″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 1.732″ | Tool Type | HSK |
| Body Diameter (BD) | 1.752″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Inch |
| Shank Standard | HSK A | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Modular connections (CLICK-FIT) with HSK DIN69893/A tapered shanks | Country of Origin | Israel |
| Remarks | Tightening torque: 44 lbfxft A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info |
Shipping Info
Package Weight
2.829
