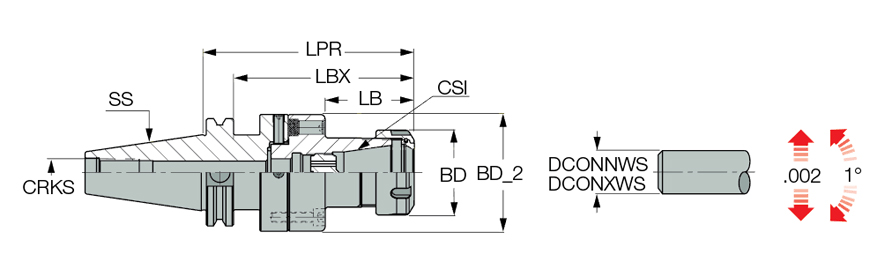

ADJ CAT50 D2.756 ER32
| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Protruding Length (LPR) | 4.902″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 2.067″ | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Body Diameter (BD) | 1.969″ | Tool Type | Caterpillar |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | CAT | Measurement Type | Inch |
| Work Piece Shank Diameter | ER32 | Body Material | Steel |
| Application | | CAT A.N.S.I B5.50 | Center Alignment Devices | Collet Chucks | | Connection Code Machine Side (CCMS) | CAT |
Product Features

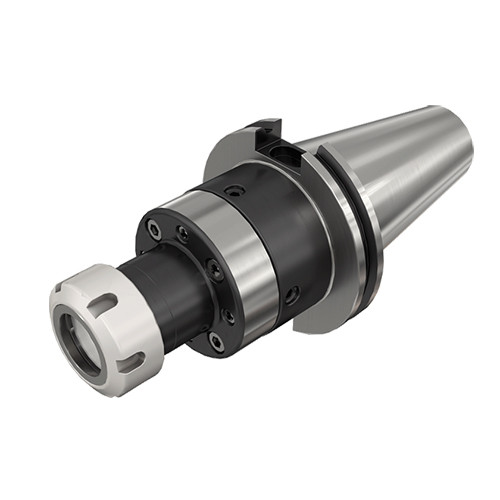

| Family Description | DIN 6499 ER center alignment collet chuck with a Caterpillar tapered shank. | Country of Origin | Israel |
| Remarks | Radial adjustment .002, Angular adjustment 1° |
Shipping Info
Package Weight
9.833
