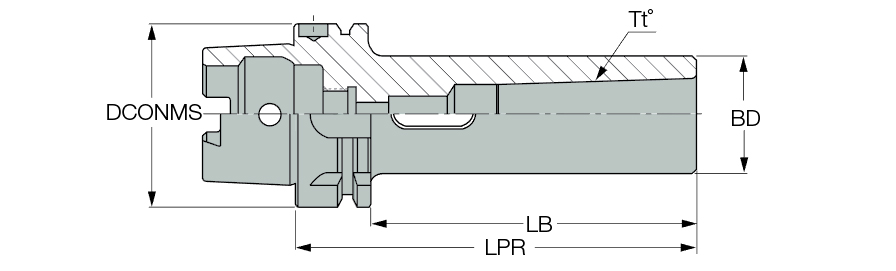

HSK A100 MT5X200
| Shank Size (SS) | 100 | Application | | HSK | Taper Adapters | |
| Protruding Length (LPR) | 7.874″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 6.732″ | Tool Type | HSK |
| Body Diameter (BD) | 2.48″ | Measurement Type | Inch |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Shank Standard | HSK A | Connection Code Machine Side (CCMS) | HSK |
| Connection Diameter Machine Side (DCONMS) | 3.937″ |
Product Features

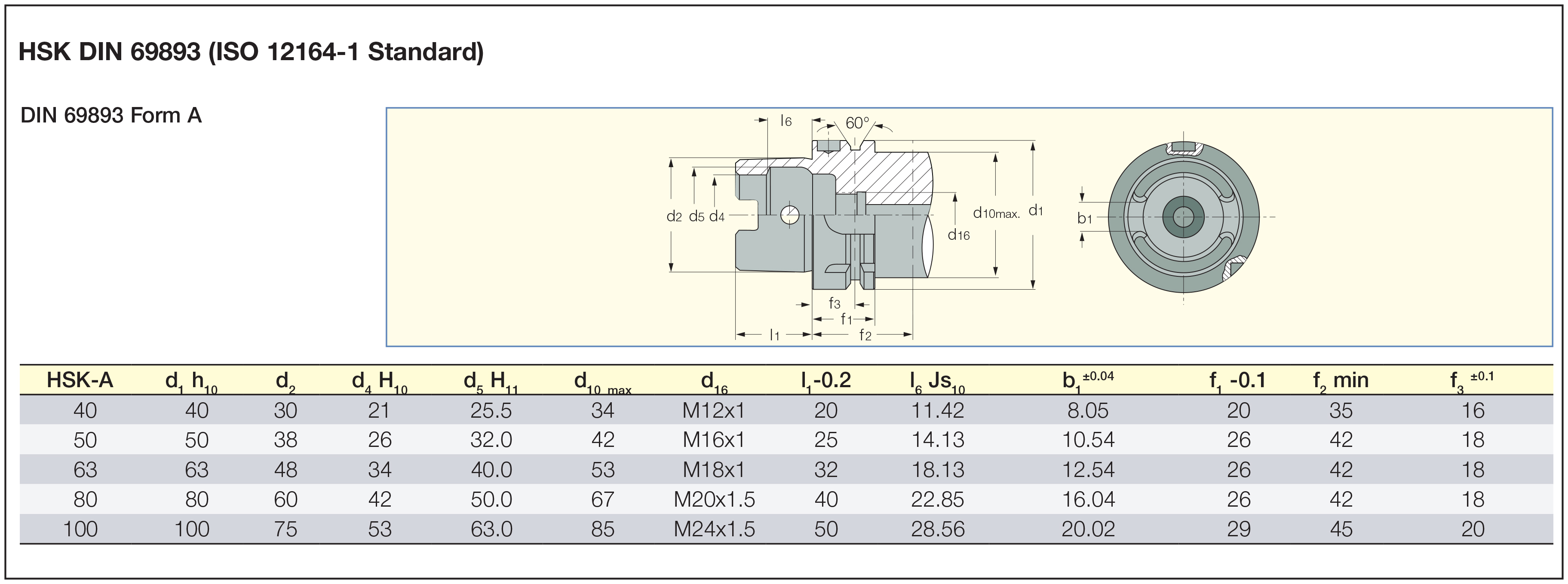

| Family Description | DIN 6383/DIN 228-2 form D tang Morse taper adapters with DIN 69893/A HSK tapered shanks. | Country of Origin | India |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
10.406
