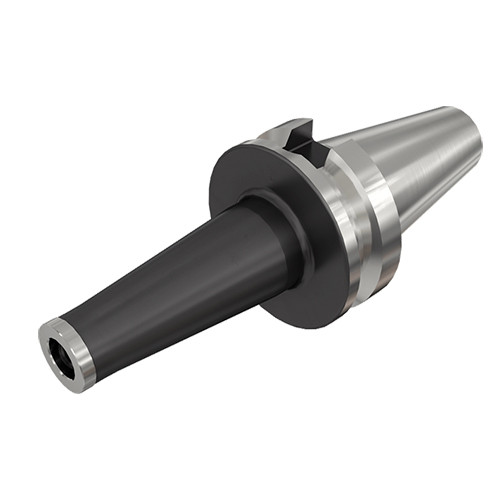

BT50 ODP 16X144

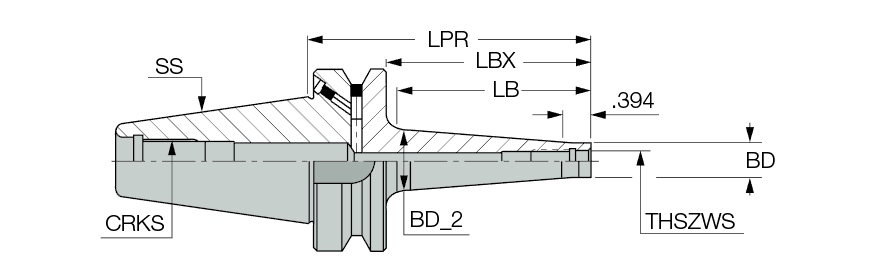

| Connection Diameter Machine Side (DCONMS) | 1.968″ | Tool Type | BT |
| Protruding Length (LPR) | 5.669″ | Measurement Type | Inch |
| Shank Size (SS) | 50 | Body Material | Steel |
| Body Diameter (BD) | 1.575″ | Overall Length (OAL) | 9.677″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type). | Country of Origin | Italy |
| Remarks | For adaptation Click on More Info. The coolant passages in the B type flange are blocked with screws which can be removed when required. |
Shipping Info
Package Weight
9.561
