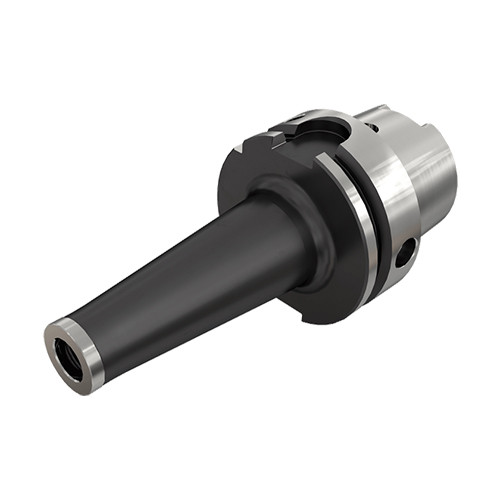

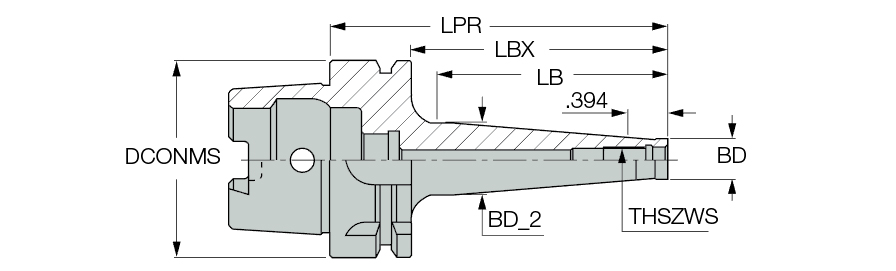

HSK A63 ODP10X59
| Shank Size (SS) | 63 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 |
| Protruding Length (LPR) | 2.323″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 0.984″ | Tool Type | HSK |
| Body Diameter (BD) | 0.709″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Inch |
| Shank Standard | HSK A | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Connection Code Machine Side (CCMS) | HSK |
| Application | | FLEXFIT | HSK | |
Product Features
| Family Description | FLEX-FIT Threaded Adaptation with HSK DIN 69893/A tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
1.731
