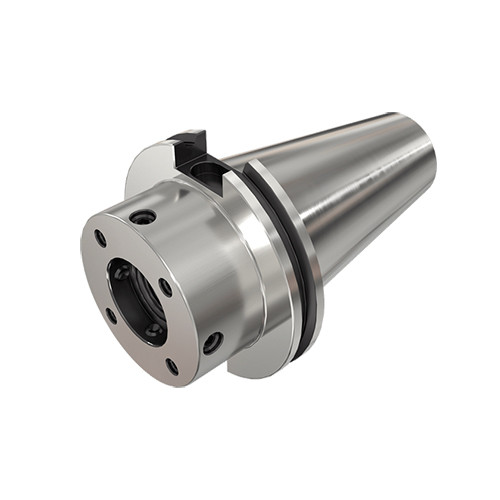

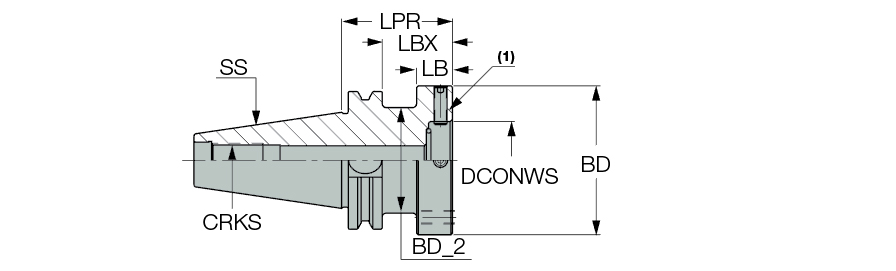

ADJ CAT50 D2.756
| Shank Size (SS) | 50 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 1.969″ | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Body Length (LB) | 1.219″ | Tool Type | Caterpillar |
| Body Diameter (BD) | 2.756″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 50″ | Body Material | Steel |
| Application | | CAT A.N.S.I B5.50 | Center Alignment Devices | | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Center alignment shank and base with a caterpillar AD/B tapered shank. (Used for specially tailored tool holders). | Country of Origin | Israel |
| Remarks | (1) Use 4 mm hex key for screw adjustment Add B to the designation for coolant through flange option |
Shipping Info
Package Weight
7.657
