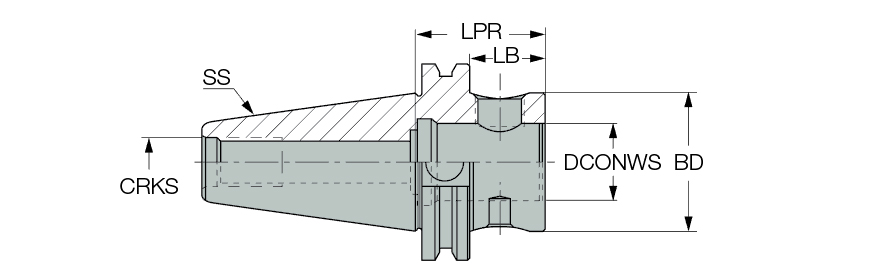

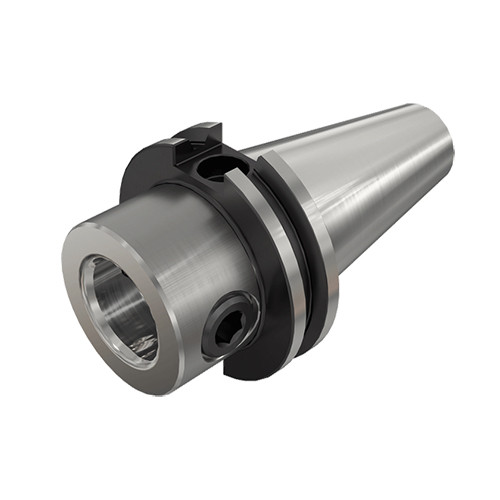

CAT50 CF4-S
| Shank Size (SS) | 50 | Application | | CAT A.N.S.I B5.50 | CLICKFIT | |
| Protruding Length (LPR) | 1-3/4″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 1″ | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Body Diameter (BD) | 1.752″ | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | CAT | Measurement Type | Inch |
| Work Piece Shank Diameter | CF4 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | Caterpillar AD tapered shanks for CLICK-FIT Adapters | Country of Origin | Israel |
| Remarks | For Adaptation Click on More Info. |
Shipping Info
Package Weight
6.614
