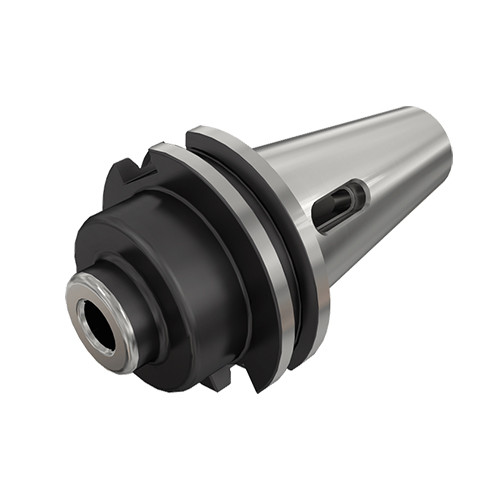

CAT50 MT 1X1.500

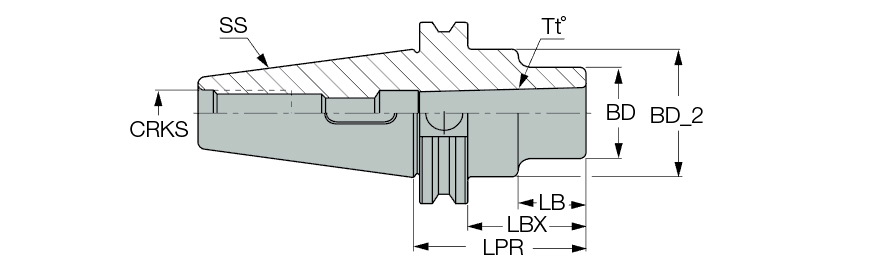

| Shank Size (SS) | 50 | Connection Diameter Workpiece Side (DCONWS) | 1MT |
| Protruding Length (LPR) | 1-1/2″ | Connection Retention Knob Thread Size (CRKS) | 1-8 |
| Body Length (LB) | 0.12″ | Tool Type | DIN 69871 |
| Body Diameter (BD) | 1″ | Measurement Type | Inch |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50″ | Connection Code Machine Side (CCMS) | CAT |
| Application | CAT50 |
Product Features
| Family Description | DIN 6383 Morse taper adapters with tang DIN228-2 form D and Caterpillar tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
7.028
