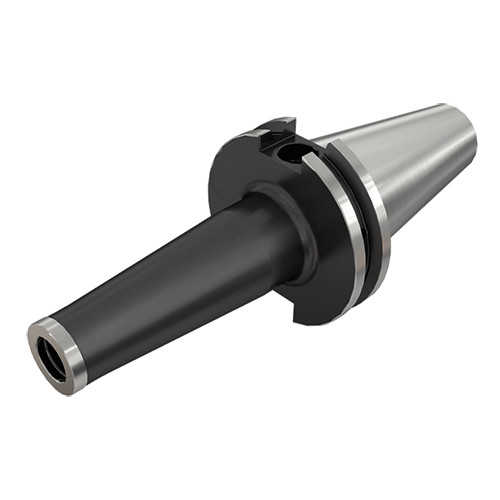

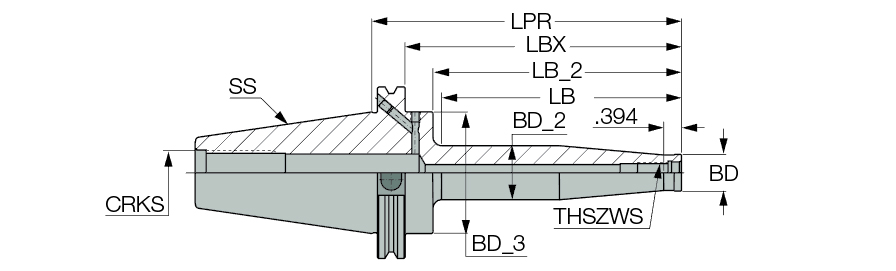

CAT40 ODP M10X4.000
| Shank Size (SS) | 40 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 |
| Protruding Length (LPR) | 4″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 3.149″ | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Body Diameter (BD) | 0.709″ | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | CAT | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 40″ | Body Material | Steel |
| Application | | CAT A.N.S.I B5.50 | FLEXFIT | | Connection Code Machine Side (CCMS) | CAT |
Product Features
| Family Description | FLEXFIT threaded adaptations with integral Caterpillar form ADB tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
2.372
