ECCENTER SLEEVE 25X32
| Protruding Length (LPR) | 46 mm | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Diameter (BD) | 32 mm | Tool Type | Accessories and Devices |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Application | | Center Alignment Devices | Collets & Accessories | |
Product Features

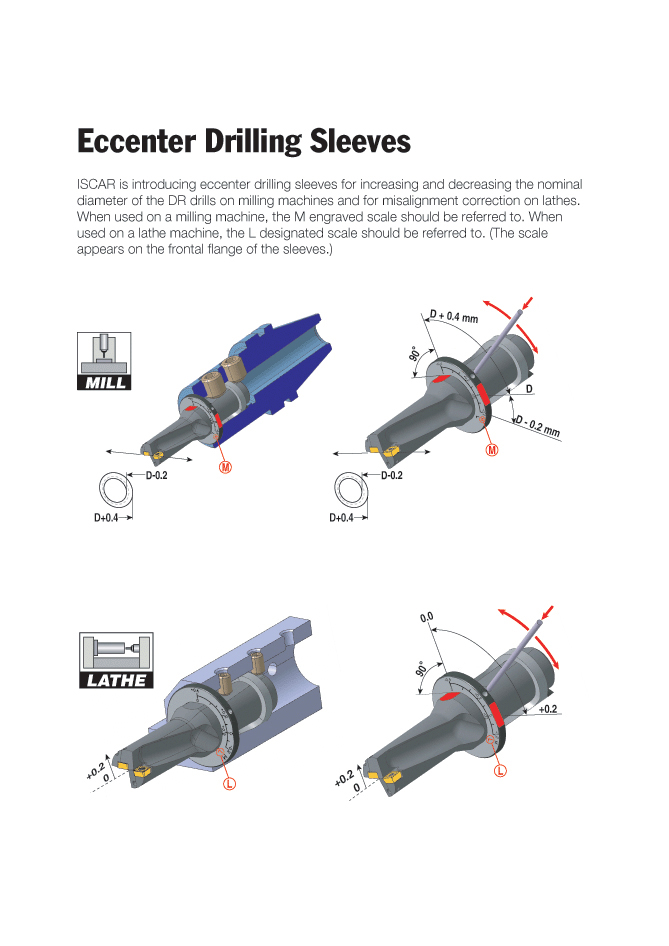

| Family Description | Bushings for enlarging or reducing DR nominal drilling diameters by shifting the drill off-center. | Country of Origin | Israel |

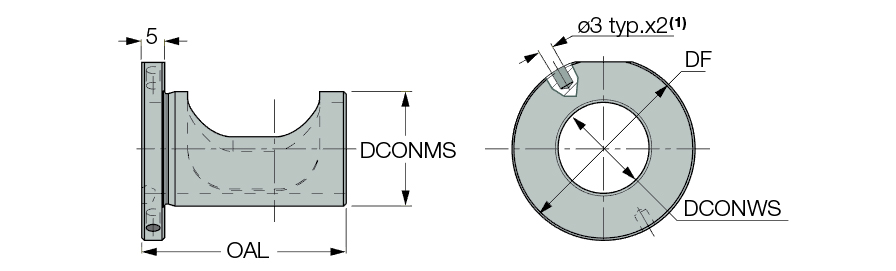

| Remarks | (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied) |
Shipping Info
Package Weight
0.377
