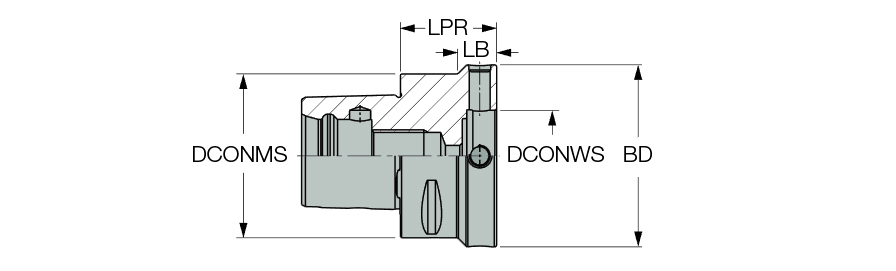

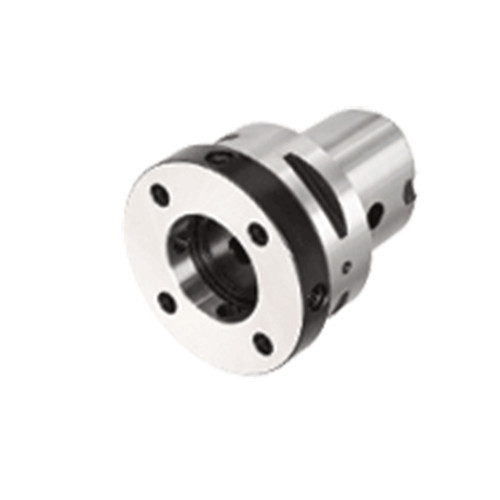

ADJ C6 D70
| Shank Size (SS) | 2.48 | Application | | Center Alignment Devices | ISO 26623 1 (CAMFIX) | |
| Protruding Length (LPR) | 1.457″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Diameter (BD) | 2.7559″ | Measurement Type | Inch |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ |
Product Features
| Family Description | FINEFIT Center Alignment Shank and Base with a CAMFIX (ISO 26623-1) Shank | Country of Origin | Israel |
| Remarks | Radial adjustment .002. Angular adjustment 1° |
Shipping Info
Package Weight
2.685
